Silver Plated Copper 12Gbps 1.0 Meter SFF 8643 SAS Cord

Product Categories
Contact Now

Silver Plated Copper 12Gbps 1.0 Meter SFF 8643 SAS Cord

Place of Origin : Guangdong,China

Brand Name : HiSeTec

Certification : RoHS CE

Packaging Details : PE bag

Delivery Time : 5-8Week

Payment Terms : TT

Color : Black

Transmission rate : 12Gbps

Length : 1M

Wire AWG : 30AWG Silver-plated Copper

outer covering : PBT

Series : Mini SAS SFF-8643

PCB : Goldfinger gold plated 30U

Sample : Allowed

Contact Now

Silver Plated Copper 12Gbps 1.0 Meter SFF 8643 SAS Cord

MiniSAS HD 12G 8X SFF-8643 TO SFF-8087 INTERNAL FLAT COPPER CABLE
Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications
Product Features
· Transmission rate 12Gbps
· Meet SAS3.0 specification
· Low power
· Differential impedance 85ohms
· Self lock design
SFF-8643
Series: HD Mini SAS
· Cable Length:1.0 Meters
· Wire Size:30AWG,Silver-plated Copper,OD:11*0.85MM
· Plating: Au 30u"
· Color: Cable Blue, Overmold Brown
· Environmental Compliance: RoHS
Signal Integrity
. Mated Connector Impedance: 85 ohm±15%
. Cable Absolute Impedance: 85 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms
. Insertion loss: -6dB maximum up to 4.5Ghz;
11dB maximum up to 9Ghz.

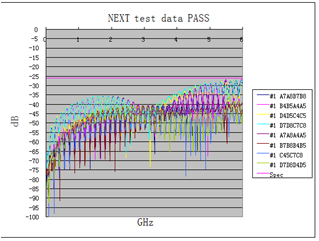

. Crosstalk: -35 dB up to 6Ghz
Mini SAS HD 12G INTERNAL FLAT COPPER CABLE 68P STR TO 72P Elbow
Product DescriptionSAS SFF-8643 SFF-8087
ConnectorInternal Mini SAS (SFF-8643)
Cable Length1M
Signal Wire Size30AWG, Silver-plated Copper
Impedance100 OHM
PlatingAu 30u'
Cable ColorBlack
Applicationsservers,Storage rack,Workstations


Silver Plated Copper 12Gbps 1.0 Meter SFF 8643 SAS Cord
Silver Plated Copper 12Gbps 1.0 Meter SFF 8643 SAS Cord
Silver Plated Copper 12Gbps 1.0 Meter SFF 8643 SAS Cord

Internal MiniSAS HD copper cable assembly supports users on impact, high speed SAS
applications such as: Storage, severs,HPC (High performance computing), HBAs, switch etc.
he product uses 8 differential pairs to provide 4 transmission channels with 12Gbps data rate
each channel. The interfaces are adopted for SAS 2.1 and SAS3.0 standards. A low profile
PCIe card can accommodate 4 MiniSAS HD ports versus 2 MiniSAS ports.
