8X 68Pin SFF 8087 Male To 72Pin Internal Mini SAS Cable

Product Categories
Contact Now

8X 68Pin SFF 8087 Male To 72Pin Internal Mini SAS Cable

Brand Name : HiSeTec

Certification : RoHS CE

Place of Origin : Guangdong,China

Payment Terms : TT

Delivery Time : 5-8Week

Packaging Details : PE bag

Color : Black

Transmission rate : 12Gbps

Length : 0.5M

Wire AWG : 30AWG

Series : Mini SAS SFF-8087

Sample : Allowed

outer covering : PBT

PCB : Goldfinger gold plated 30U

Contact Now

8X 68Pin SFF 8087 Male To 72Pin Internal Mini SAS Cable

MiniSAS 12G 8X 68P TO 2*36P INTERNAL COPPER CABLE SFF-8087
Product Features
· Transmission rate 12Gbps
· Meet SAS3.0 specification
· Low power
· Differential impedance 100ohms
· Self lock design
Applications
· Servers
· Data storage equipment
· Workstation
· RAID
· SAS port adapter
· Data/Communications
SFF-8087
Series: Mini SAS
· Cable Length:0.5 Meters
· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM
· Plating: Au 30u"
· Color: Cable Silver, Overmold Black
· Environmental Compliance: RoHS

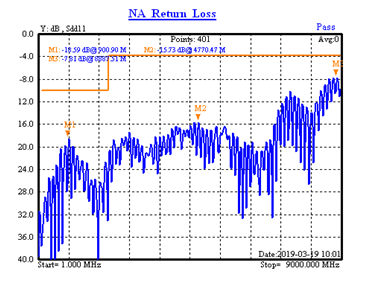

Signal Integrity
. Mated Connector Impedance: 100 ohm±15%
. Cable Absolute Impedance: 100 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms
. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.
. Crosstalk: -35 dB up to 6Ghz
12G Mini SAS 68P TO Mini SAS 2*36P Cable Straight
Product Description SAS SFF-8088
Connector Internal MiniSAS (SFF-8087)
Cable Length 0.5M
Signal Wire Size 30AWG, Tinned Copper
Impedance 100 OHM
Plating Au 30u'
Cable Color Black
Applications servers,Storage rack,Workstations
8X 68Pin SFF 8087 Male To 72Pin Internal Mini SAS Cable

8X 68Pin SFF 8087 Male To 72Pin Internal Mini SAS Cable

8X 68Pin SFF 8087 Male To 72Pin Internal Mini SAS Cable

Mini Serial Attached SCSI (SAS) SFF-8087 to 36Pin Mini SAS SFF-8087 cable is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers.Data transfer speed is determined by the capabilities of the connected hardware.
Storage Expansion Tool with great quality maximize the capacity of your RAID configuration or SAN network with this tough but flexible cable that is built to withstand 24/7 use.
